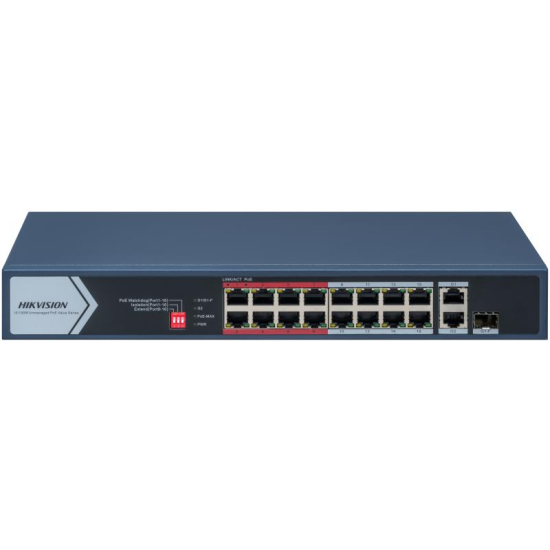

Hikvision DS-3E0318P-E/M(C) 16 Port Fast Ethernet Unmanaged POE Switch
-13 %

Hikvision DS-3E0318P-E/M(C) 16 Port Fast Ethernet Unmanaged POE Switch

  • Offer Price: 14,000৳
  • Price: 16,000৳
  • Stock: In Stock
  • Brand: Hikvision
  • Model: DS-3E0318P-E-M
14,000৳
16,000৳
Ex Tax: 14,000৳

Key Features

  • MAC Address Table: 4 K
  • Switching Capacity: 7.2 Gbps
  • Packet Forwarding Rate: 5.356 Mpps
  • Internal Cache: 2.75 Mbits

Specification

Generel information
MAC Address Table 4 K
Max Power Consumption 150 W
Operating Temperature –10 °C to 55 °C (14 °F to 131 °F)
PoE Ports 1 to 16
Port 16 × 10/100 Mbps PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port
Power Consumption 20 W
Power Supply 100 to 240 VAC, 50/60 Hz, Max. 2.5 A
Standard Functions IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Switching Capacity 7.2 Gbps
Working Mode Standard mode (default); Extend mode
Physical Information
Dimension 266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)
Gross Weight 2.58 kg (5.69 lb)
Net Weight 1.80 kg (4.00 lb)
Temperature
Storage Temperature 5% to 95% (no condensation)

Description

Hikvision DS-3E0318P-E/M(C) Ethernet POE Switch Price in BD

Hikvision DS-3E0318P-E/M 16 Port Fast Ethernet Unmanaged POE Switch is a versatile networking solution designed to provide seamless connectivity and power distribution for a variety of applications. This switch offers a range of features that make it a reliable choice for small to medium-sized network setups, surveillance systems, and other scenarios where Power over Ethernet (PoE) capability is essential. Featuring 16 10/100 Mbps PoE ports, 1 gigabit RJ45 port, and 1 gigabit fiber optical port, this switch enables efficient data transmission and power delivery to compatible devices over a single Ethernet cable. The RJ45 ports support full duplex communication and feature MDI/MDI-X adaptive functionality, simplifying network setup and configuration. The switch offers two working modes: Standard mode and Extend mode, enhancing flexibility based on specific networking requirements. It complies with IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standards, ensuring seamless interoperability within different network environments. With a switching capacity of 7.2 Gbps and a packet forwarding rate of 5.356 Mpps, the switch efficiently handles data traffic, minimizing bottlenecks and ensuring smooth network performance. The built-in MAC Address Table supports up to 4K MAC addresses, facilitating effective data routing. The Hikvision DS-3E0318P-E/M switch features PoE capabilities that adhere to IEEE 802.3af and IEEE 802.3at standards. It offers various power pin options for PoE delivery, allowing compatibility with a wide range of PoE-enabled devices such as IP cameras and wireless access points. The switch's PoE Port feature extends to ports 1 to 16, each capable of delivering up to 30 W of power. With a total PoE power budget of 130 W, it efficiently powers multiple devices without the need for additional power outlets. The switch also offers a dialing function for long-range connections, allowing ports 9 to 16 to transmit data up to 300 meters at a speed rate of 10 Mbps, which is particularly useful for extending network coverage in larger spaces.

Hikvision DS-3E0318P-E/M (C) Ethernet POE Switch Features

  • Port Configurations: The switch features 16 10/100 Mbps PoE ports, 1 gigabit RJ45 port, and 1 gigabit fiber optical port, offering flexibility in connecting a variety of devices.
  • Working Modes: The switch supports both standard mode and extend mode, allowing you to customize the network setup according to your requirements.
  • High Priority Ports: Ports 1 to 8 are designed for high-priority applications, ensuring that critical devices receive optimal bandwidth and connectivity.
  • PoE Support: The switch complies with IEEE 802.3af and IEEE 802.3at standards for Power over Ethernet (PoE), enabling it to deliver power and data over a single Ethernet cable to compatible devices.
  • PoE Power Pin Configuration: The switch supports various PoE power pin configurations, including end-span, mid-span, and 8-pin power, providing compatibility with a wide range of PoE devices.
  • PoE Port Capabilities: Ports 1 to 16 support PoE, each capable of delivering up to 30W of power, facilitating the connection of PoE-enabled devices such as IP cameras, access points, and VoIP phones.
  • PoE Power Budget: With a total PoE power budget of 130W, the switch can effectively power multiple PoE devices simultaneously.
  • Dialing Function for Long Range: Ports 9 to 16 support a dialing function for long-range connections, allowing for communication at up to 300 meters with a speed rate of 10 Mbps.
  • Switching Capacity: The switch offers a robust switching capacity of 7.2 Gbps, ensuring smooth and efficient data transmission across the network.
  • Compact Design: With dimensions of 266 mm × 44.5 mm × 220.8 mm, the compact metal shell design is suitable for various installation environments.
