|Resolution||1280 (H) × 720 (V)|
|angle adjustment||Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°|
|Day & Night||IR Cut Filter|
|Focal Length||Angle of View: 70.9°(3.6mm), 92°(2.8mm), 56.7°(6mm), 38.6°(8mm)|
|Image Sensor||1 MP CMOS|
|Operating Conditions||-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)|
|Power||12 VDC±15%, max. 4 W|
|Shutter Speed||PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s|
|Supplement Light Range||Up to 20 m|
|Video Outputs||1 HD analog output|
|Supplement Light Type||IR|
|Dimension||Φ 110 mm × 93.2 mm (Φ 4.33" × 3.67")|
|Weight||Approx. 350 g (0.77 lb.)|

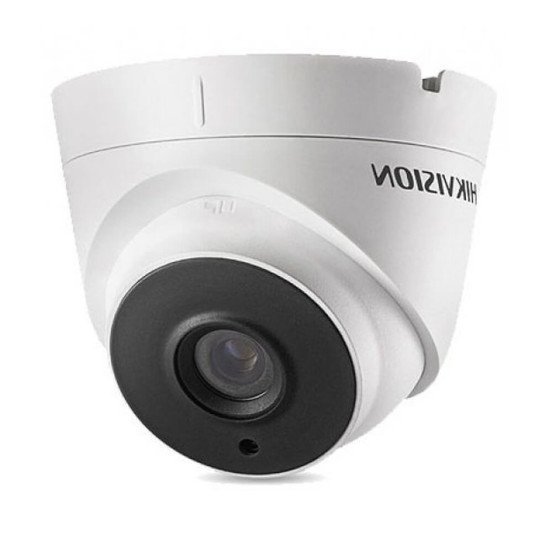

Hikvision DS-2CE56C0T-IT1/IT EXIR Turret Camera
The Hikvision DS-2CE56C0T-IT1/IT EXIR Turret Camera is a versatile and reliable surveillance device designed to provide high-quality video monitoring in various environments. With its impressive features and specifications, this camera offers a comprehensive solution for both residential and commercial security needs.Equipped with a 1 MP CMOS image sensor, the camera delivers sharp and clear images with a resolution of up to 1280 x 720 pixels. It operates on both PAL and NTSC signal systems, ensuring compatibility with different video standards worldwide. The camera's low-light performance is remarkable, with a minimum illumination of 0.01 Lux at F1.2, enabling it to capture clear footage even in challenging lighting conditions. Additionally, it features an IR cut filter for accurate color reproduction during the day and switches to infrared mode at night, ensuring optimal visibility in complete darkness.The Hikvision DS-2CE56C0T-IT1/IT offers flexibility in lens options, with choices of 2.8mm, 3.6mm, 6mm, and 8mm fixed focal lengths. This allows for a wide range of viewing angles, catering to different monitoring requirements. The camera's turret design enables easy angle adjustment, with a pan range of 0 to 360 degrees, a tilt range of 0 to 75 degrees, and a rotation range of 0 to 360 degrees.
In terms of connectivity, the camera provides a single HD analog output for seamless integration with monitoring systems. Its rugged construction with IP66 protection ensures resistance to harsh weather conditions, making it suitable for both indoor and outdoor installations. With an operating temperature range of -40°C to 60°C (-40°F to 140°F), the camera is built to withstand extreme environments.The Hikvision DS-2CE56C0T-IT1/IT EXIR Turret Camera offers reliable performance with a power supply of 12 VDC±15% and a maximum power consumption of 4 watts. Its compact dimensions of Φ 110 mm × 93.2 mm (Φ 4.33" × 3.67") and lightweight design of approximately 350 grams (0.77 lb.) make it easy to install and adjust.
- Image Sensor: The camera is equipped with a 1 MP CMOS image sensor, providing high-quality video footage.
- Signal System: It supports both PAL and NTSC signal systems, ensuring compatibility with various display devices.
- Day & Night Functionality: The camera utilizes an IR cut filter that automatically switches between day and night modes, allowing for clear video capture in low-light conditions. It can achieve a minimum illumination of 0.01 Lux at F1.2 with AGC on, and it has 0 Lux capability with infrared (IR) illumination.
- Angle Adjustment: The camera offers flexible angle adjustment capabilities, with a pan range of 0 to 360 degrees, tilt range of 0 to 75 degrees, and rotation range of 0 to 360 degrees. This allows for precise positioning and monitoring of specific areas.
- Max Resolution: It supports a maximum resolution of 1280 x 720 pixels (720p HD), providing detailed and sharp images.
- Lens Options: The camera comes with a fixed focal lens and offers four options: 2.8 mm, 3.6 mm, 6 mm, and 8 mm. Each lens option provides a different angle of view, ranging from 38.6 degrees to 92 degrees, allowing for customizable coverage based on the surveillance requirements.
- Illuminator: The camera features built-in infrared (IR) illuminators that provide supplementary lighting, enabling night vision capabilities. It offers an IR supplement light range of up to 20 meters.
- Frame Rate: It supports a frame rate of 25 frames per second (fps) for PAL system and 30 fps for NTSC system, ensuring smooth and fluid video playback.
- Video Output: The camera has one high-definition (HD) analog output for easy connection to compatible display devices or recording systems.
- Power and Protection: It operates on a 12 VDC power supply with a maximum power consumption of 4 Watts. The camera is designed to withstand harsh weather conditions with its IP66-rated protection, making it suitable for outdoor installations.
