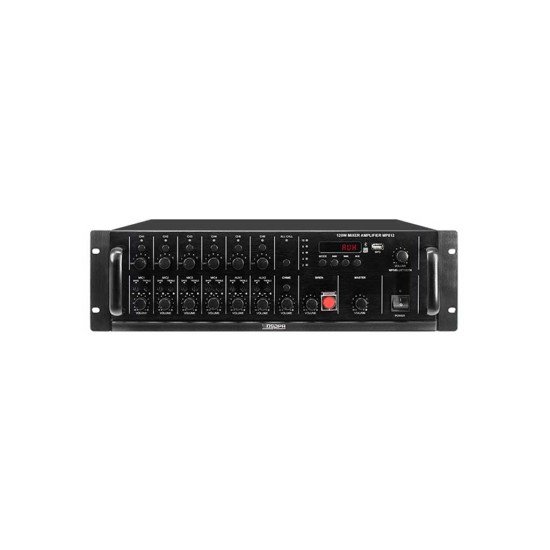

DSPPA MP812 6 Zones Integrated Mixer Amplifier
DSPPA MP812 6 Zones Integrated Mixer Amplifier
Call for price
DSPPA MP812 6 Zones Integrated Mixer Amplifier
DSPPA MP812 6 Zones Integrated Mixer Amplifier

DSPPA MP812 6 Zones Integrated Mixer Amplifier

  • Price: 0৳
  • Stock: Call for price
  • Brand: DSPPA
  • Model: MP812
0৳

01844944094,01844944093

Specification

Key Features
Frequency response MIC: 100Hz-18kHz (±3dB); TEL: 100Hz-18kHz (±3dB); LINE: 80Hz-20kHz (±3dB);
Power Consumption 250W
Manufacture by
brand DSPPA
Generel information
Auxiliary line output 0dBV, unbalanced
Constant impedance output 4-16Ω (balanced, not grounded)
Constant voltage output 70V, 100V
Line input sensitivity 300mV(±50mV), 1kHz/unbalanced;
Microphone input sensitivity 3.0mV(±0.5mV), 1kHz/unbalanced; 5.5mV(±0.5mV), 1kHz/balanced
Model MP812
Output adjustment rate From full load to no load, ≤3dB
Protection function Overload protection, short-circuit protection, temperature protection
Rated power 120W
Remote microphone input 2000mV, balanced
Others
Total harmonic distortion ≤ 1% (1kHz, normal working condition)
Physical Information
Dimension of machine (L×W×H mm) 483×413×132
Dimension of packing (L×W×H mm) 540×510×200
Gross Weight 16.5kg

Description

DSPPA MP812 6 Zones Integrated Mixer Amplifier

MP812/825/835 is a multi zone mixer and this kind of cost-effective professional intelligent address system combining the luxurious and high-grade aluminum-alloy panel with standard and exquisite case with an elegant appearance, and also suitable for household, factory, school, hospital, shop and other commercial application. MP 812 series is kind of integrated mixer amplifier. The amplification system of this equipment is designed with imported power tube, resulting in the strong power, wide frequency band, low noise, high fidelity and quality at the level of performance.  As a multi zone amplifier, there are six partitions and constant impedance output in order to facilitate the user to access the back-end loudspeaker. With the perfect and reliable overload protection, short-circuit protection, and overheat protection, the safety performance of this equipment is improved. The technical essence of this product is focused on the super adaptability and perfect performance. DSPPA has integrated mixer audio amplifier and other mixer amplifiers for sale. Features
  • 6 zones output, each zone with individual volume control
  • 4 remote paging stations, support cascaded linkage
  • 4 combo Mic inputs, support phantom power supply
