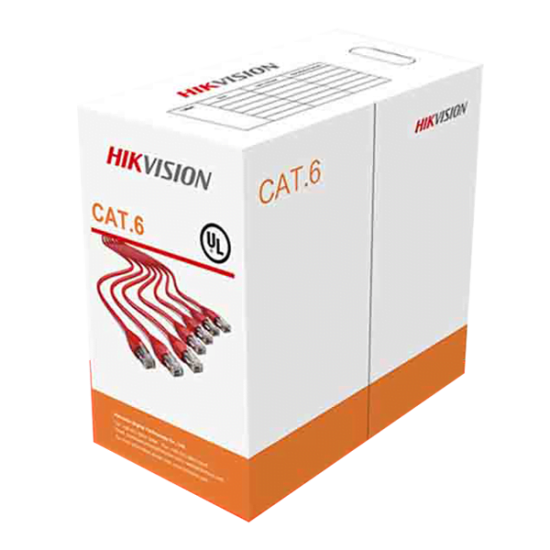

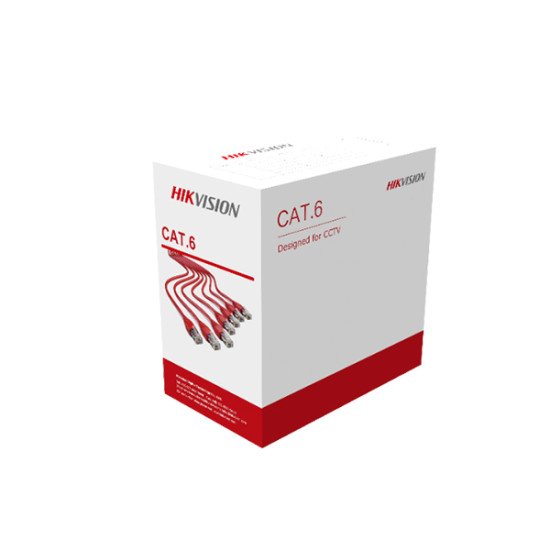

Hikvision DS-1LN6U-SC0 Cat 6 Cable Price In Bangladesh

Hikvision
Add to Wishlist
Compare
  • Full diameter 305 m CAT6 network cable
  • Core diameter: 0.55mm
  • Excellent transmission performance using solid copper
  • Quality verified by Fluke test
  • Guaranteed long PoE transmission distance
  • Great PVC flame resistance.

৳  11,000.00

Hikvision DS-1LN6U-SC0 Cat 6 Cable Price In Bangladesh

  • Stable electrical performance, compliant with ANSI/TIA-568-C.2, IEC61156, ISO/IEC11801
  • Compliant with RoHS 2.0
  • Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project
  • Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature
  • Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE)
  • Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance

Hikvision DS-1LN6U-SC0 U/UTP Cat6 PVC 23 AWG Cable - Excel Technologies Limited

General

  • Rip-CordYes
  • CategoryCat.6
  • Sheath Printing HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
  • Reference StandardISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
  • Fire Resistance No
  • SeparatorYes

What is the price of the Hikvision DS-1LN6U-SC0 Cat 6 Cable Price In Bangladesh in Bangladesh?

Techdeal offers you, Hikvision DS-1LN6U-SC0 Cat 6 Cable Price In Bangladesh at a low price in Bangladesh. The latest price of Hikvision DS-1LN6U-SC0 Cat 6 Cable Price In Bangladesh is 11000 tk only. You can order on our website or Facebook Page or visit any of our showrooms. For more information- 01844944094.

Categories: , ,
brand

  • General
  • Rip-CordYes
  • CategoryCat.6
  • Sheath Printing HIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
  • Reference StandardISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
  • Fire Resistance No
  • SeparatorYes
  • Conductor
  • MaterialSolid-Bare Copper (99.95%)
  • Diameter0.55 ± 0.005 mm, 23 AWG
  • Insulation
  • MaterialHDPE
  • Diameter0.98 ± 0.05 mm
  • Sheath Physical Properties
  • Before Aging

    Tensile strength ≥ 13.5 Mpa

    Elongation ≥ 150%

  • Aging Period100°C × 24h × 10d
  • After Aging

    Tensile strength ≥ 12.5 Mpa

    Elongation ≥ 125%

  • Cold Bend-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
  • Electrical Characteristics(20℃)
  • 1.0-250.0 MHz Impedance

    100 ± 15 Ω @ ≤ 100 MHz

    100 ± 25 Ω @100-250 MHz

  • 1.0-250.0 Mhz Delay Skew≤ 45 ns/100 m
  • DC Resistance≤ 9.38 Ω/100 m
  • DC Conductor Resistance Unbalance≤ 5.0%
  • Package Dimension400 mm (W) × 400 mm (H) × 240 mm (D) (15.75″ × 15.75″ × 9.45″)
  • 12.3 ± 0.5kg
  • Cable Length(305 ± 1.5) m
  • Ambient Temperature-20°C to 75°C (-4°F to 167°F)
  • Operating Voltage60 V
  • Sheath
  • Thickness0.50 ± 0.10 mm
  • MaterialPVC
  • ColorOrange
  • Diameter6.00 ± 0.30 mm
