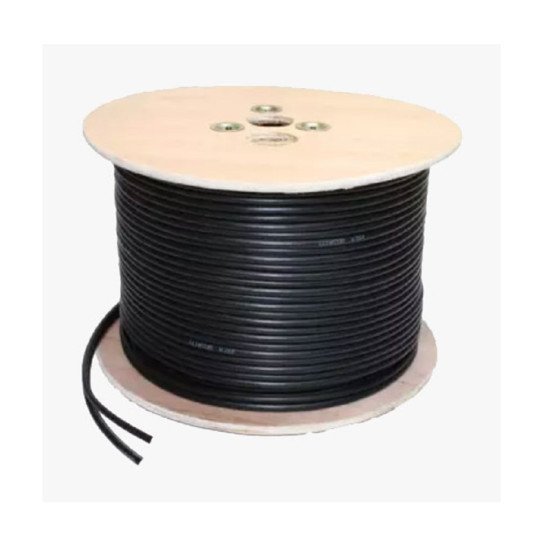

RG 6 COAXIAL CABLE 300 MTR

Features Of RG 6 Coaxial Cable:

• High-density copper
• Nominal diameter- 0.064” (1.63 mm)

• Gas Expanded Polyethylene
• Nominal Diameter over Dielectric: 0.280” (7.11 mm)

• 1st Shield Laminated Aluminum Tape Bonded to the Dielectric
• Nominal Diameter over Tape: 0.287” (7.29 mm)
• 2nd shield: 34 AWG Aluminum Braid wire
• 60% Coverage

• PVC
• Nominal Diameter over Jacket: 0.400” (10.16 mm)
• Nominal Jacket Thickness: 0.042” (1.07 mm)

• Impedance: 75.0 +/-3.0 Ohms
• The velocity of Propagation: 85.0% Nominal
• Structural Return Loss: 5 MHz to 1000 MHz ≥ 20db, 1000MHz to 3000 MHz ≥15db
• Nominal DC Resistance (Ohms/km): Center Conductor: 41.0, Outer Conductor: 22.5
• Attenuation @68 °F (20 °C)
