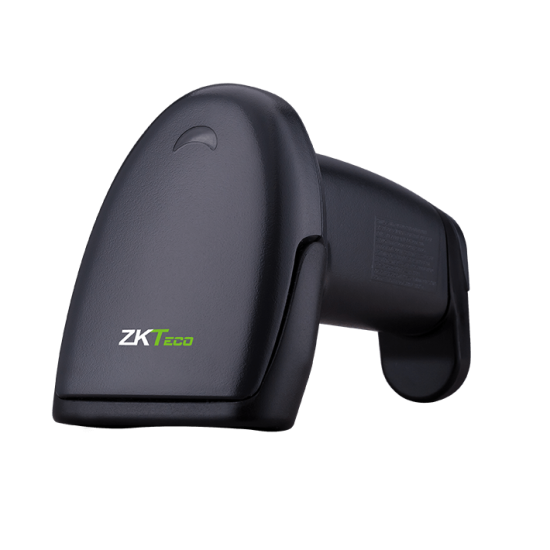

Zkteco ZKB101 1D Barcode Scanner Platform

(15 customer reviews)

  • ZKB101 is a 32-bit wired red laser scanner;
  • With white and black available, fireproof, waterproof,shock-proof functions, etc.;
  • Provides ultra-wide voltage range and high-performance electromagnetic compatibility;
  • Provides USB-HID interface, analog serial port; UART interface, and KB interface;
  •  Standard 10-core RJ45 interface;

৳  2,600.00

Zkteco ZKB101 are 1D barcode scanners. They support multiple data transmission modes
and the optional automatic sensing mode. They also support multiple keyboard languages
and secondary development of various keyboard languages.

SKU: TLD ZKB101 B Categories: , Tag:
Model Name ZKB101
Kind 32-bit red laser scanner.
Types of Bar Code EAN / JAN-8; EAN / JAN-13; UPC-A; UPC-E; CODE-128; CODE-93; RSS-Standard;, CODE-39; Interleaved 2/5; Standard 2/5; Matrix 2/5;, Industrial 2/5; China-Post; M: YES; MSI-PLESSEY; CODE-BAR; CODE-11 etc.
Reading depth 0-550mm (1.0mm bar code density in tests)
Reading Angle Vertical:70 °, Horizontal: 70 °
Precision > = 3mil
Decoding Speed 300 times / second
Decoding error rate 1/8 million
Electrostatic Discharge Rate Download with Contact: 9KV, Air Download: 15KV
Anti-Fall Protection 1.8m fall-proof
Dimensions 139.5 * 71.1 * 89.9mm (L * W * H)
Certifications CE, FCC, ROHS, IP65, IEC60825
Energy
Voltage 3.5-5.5V DC
Operating Current 50mA
Current at Rest 25mA
Peak Peak 100mA
Ultra-low Energy Consumption <1mA (rest) (Optional)
Interface
USB-HID Compatible with USB 1.1 interface or higher.
UART Transmission speed range 1200-115200 bps
Work environment
Operating Temperature -10 ° C ~ + 50 ° C
Storage Temperature -20 ° C ~ + 60 ° C
Operational Humidity 5% ~ 95% Relative (condensation)
