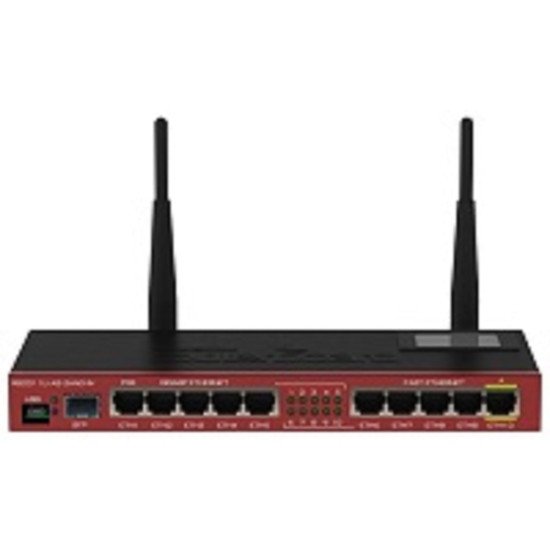

Mikrotik RB2011UiAS-2HnD-IN 2 Antena Gigabit Ethernet Router

(1 customer review)
Availability:

Out of stock


  • Frequency: 600 MHz
  • Storage size: 128 MB
  • DIM: 214mm x 86mm for PCB

৳  11,000.00 ৳  11,830.00

Out of stock

Mikrotik RB2011UiAS-2HnD-IN 2 Antena Gigabit Ethernet Router



The RB2011 is a low cost multi port device series, powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring – just a few of the vast number of features supported by RouterOS.

RouterBOARD 2011UiAS-2HnD has most features and interfaces from all our Wireless routers. It’s powered by the new Atheros 600MHz 74K MIPS network processor, has 128MB RAM, five Gigabit LAN ports, five Fast Ethernet LAN ports and SFP cage (SFP module not included!). Also, it features powerful 1000mW dual chain 2.4Ghz 802.11bgn wireless onboard, RJ45 serial port, microUSB port and RouterOS L5 license.

There are two MMCX connectors for adding external antennas, so you can create powerful dual chain wireless backbone, AP or CPE unit.

There is PoE output function for port #10 – it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

Categories: , ,
ArchitectureMIPSBE
CPUAR9344
CPU core count1
CPU nominal frequency600 MHz
Dimensions214mm x 86mm
RouterOS license5
Operating SystemRouterOS
Size of RAM128 MB
Storage size128 MB
Storage typeNAND
MTBFApproximately 100’000 hours at 25C
Tested ambient temperature-40°C to 60°C
Suggested price$99.00

Powering

Details
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage8-30 V
Max power consumption6 W
FAN countPassive
PoE inPassive PoE
PoE in input Voltage8-30 V

PoE-out

Details
PoE-out portsEther10
PoE outPassive PoE
Max out per port output (input 18-30 V)510 mA
Max total out (A)510 mA

Wireless specifications

Details
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Wireless 2.4 GHz chip modelAR9344
Wireless 2.4 GHz generationWi-Fi 4

Ethernet

Details
10/100 Ethernet ports5
10/100/1000 Ethernet ports5

Fiber

Details
SFP ports1

Peripherals

Details
Serial console portRJ45
Number of USB ports1
USB Power ResetYes
USB slot typeUSB type A
Max USB current (A)1

Other

Details
PCB temperature monitorYes
Voltage MonitorYes

Certification & Approvals

Details
CertificationFCC

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s30-96
11MBit/s28-80
6MBit/s30-96
54MBit/s27-80
MCS030-92
MCS725-73
